How to Apply Max Stress Formula in Beams and Columns
Ever wondered how bridges stand tall against howling winds or how skyscrapers defy gravity? It all boils down to understanding stress – specifically, the maximum stress a beam or column can handle before it throws in the towel. This knowledge is crucial for ensuring structural integrity and, ultimately, safety. For engineers, students delving into mechanical engineering, and seasoned professionals, accurately calculating maximum stress is non-negotiable. It’s the bedrock of sound structural design.

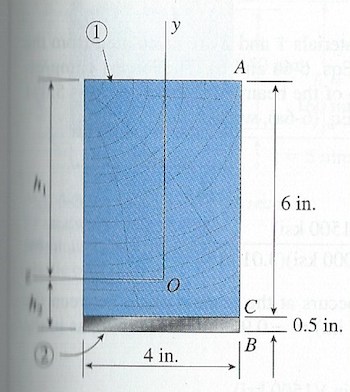

Understanding Stress in Beams and Columns
Before we dive into the formulas, let's lay some groundwork. Stress, in the context of material strength, is the internal resistance a material offers to an external force. Think of it as the material's "pushback" against being deformed. It's typically measured in Pascals (Pa) or pounds per square inch (psi).
Beams are structural members that primarily resist loads applied laterally to their axis. Columns, on the other hand, are designed to withstand axial compressive loads. Both experience different types of stress, including tensile and compressive stress, but identifying themaximumstress is the key to preventing failure analysis nightmares.
Types of Stress Relevant to Beams and Columns
Bending stress is crucial for beams. When a beam bends under load, one side experiences tension (stretching), while the other experiences compression (squishing). Shear stress also acts within the beam due to the internal forces resisting the applied load.
Columns are subjected primarily to compressive stress, pushing the material inwards. However, if a column is not perfectly aligned or if the load is not perfectly centered, it can also experience bending stress.
Maximum Stress Formula for Beams
The maximum bending stress (σmax) in a beam can be calculated using the following formula:
σmax = M y / I
Where:
- M is the maximum bending moment acting on the beam.
- y is the distance from the neutral axis to the outermost fiber of the beam (where stress is maximum).
- I is the second moment of area (moment of inertia) of the beam's cross-section.
The maximum bending moment, M, depends on the loading conditions and support types. For example, for a simply supported beam with a concentrated load at the center, M = (P L) / 4, where P is the load and L is the span length. The moment of inertia, I, depends on the geometry of the cross-section. Standard formulas for I exist for common shapes like rectangles and circles.
Example: Calculating Max Stress in a Beam
Let’s say we have a rectangular beam with a width of 100mm and a height of 200mm. It’s simply supported with a span of 3 meters, and a concentrated load of 10k N is applied at the center.
First, calculate the maximum bending moment: M = (10,000 N 3 m) / 4 = 7,500 Nm.
Next, calculate the moment of inertia: I = (100 mm (200 mm)3) / 12 = 66.67 x 106 mm4 =
66.67 x 10-6 m4.
Then, determine the distance to the outermost fiber: y = 200 mm / 2 = 100 mm = 0.1 m.
Finally, calculate the maximum bending stress: σmax = (7,500 Nm 0.1 m) / (66.67 x 10-6 m4) =
11.25 x 106 Pa =
11.25 MPa.
Maximum Stress Formula for Columns
For columns experiencing axial compressive loads, the average compressive stress (σavg) is simply:
σavg = P / A
Where:
- P is the applied axial load.
- A is the cross-sectional area of the column.
However, this is just theaveragestress. Themaximumstress in a column often occurs due to buckling, especially in slender columns. Buckling is a form of instability where the column suddenly deflects laterally.
Euler's Buckling Formula and Critical Load
Euler's formula gives the critical load (Pcr) at which buckling occurs:
Pcr = (π2 E I) / (Le)2
Where:
- E is the modulus of elasticity of the material.
- I is the minimum moment of inertia of the column's cross-section.
- Le is the effective length of the column, which depends on the end conditions (e.g., pinned, fixed).
The maximum stress due to buckling can then be estimated by dividing the critical load by the cross-sectional area: σmax = Pcr / A. However, this is a simplification. The actual stress distribution during buckling is complex.
Accounting for End Conditions
The effective length (Le) is crucial in Euler's formula. It accounts for how the column is supported at its ends. Different end conditions lead to different effective lengths. For example, a column pinned at both ends has Le = L (the actual length), while a column fixed at both ends has Le = 0.5L.
Practical Applications and Considerations
Understanding and applying these formulas is crucial in many real-world applications. Consider designing a bridge: accurately calculating the maximum stress in the support beams and columns is essential to prevent catastrophic failure. Similarly, in building construction, ensuring columns can withstand the weight of the structure is paramount.
It's also vital to consider the material properties. The modulus of elasticity (E) and yield strength of the material will influence the stress calculations and the overall structural integrity. Always factor in a safety factor to account for uncertainties and variations in material properties and loading conditions.
Pros and Cons of Max Stress Formulas
Pros:
- Provide a fundamental understanding of stress distribution in structural members.
- Allow for efficient design and optimization of beams and columns.
- Help predict potential failure points and prevent structural collapse.
Cons:
- Simplified formulas may not accurately represent complex loading conditions or geometries.
- Euler's formula is only valid for slender columns and may not be accurate for short, stocky columns.
- Material imperfections and residual stresses are often not considered in basic stress calculations.
FAQs
How do I determine the maximum bending moment in a beam?
The maximum bending moment depends on the loading and support conditions of the beam. You can determine it using methods like drawing shear and moment diagrams or using standard formulas for common beam configurations. Consult structural analysis textbooks or software for more complex scenarios.
What is the difference between stress and strain?
Stress is the internal force per unit area within a material caused by external loads. Strain is the deformation of the material caused by that stress. They are related by the material's modulus of elasticity (E): Stress = E Strain.
Why is the moment of inertia important in calculating stress?
The moment of inertia (I) represents a beam's resistance to bending. A larger moment of inertia indicates a greater resistance to bending, which translates to lower stresses for the same applied load.
When should I use Euler's formula for columns?
Euler's formula is applicable for slender columns experiencing compressive loads. It's used to determine the critical buckling load. If the column is short and stocky, other methods, like Rankine's formula, may be more appropriate.
What is a safety factor, and why is it important?
A safety factor is a multiplier applied to the calculated maximum stress to ensure the actual stress remains well below the material's yield strength or ultimate tensile strength. It accounts for uncertainties in loading, material properties, and manufacturing tolerances, providing an extra margin of safety.
How does the material of a beam or column affect its maximum stress?
The material's properties, such as its yield strength, ultimate tensile strength, and modulus of elasticity, directly influence its ability to withstand stress. A stronger material can withstand higher stresses before yielding or fracturing. The modulus of elasticity affects how much the material will deform under stress.
Conclusion
Understanding and applying the maximum stress formulas for beams and columns is fundamental to ensuring the safety and stability of structures. By mastering these concepts, you can design robust and reliable systems that stand the test of time. Remember to consider all relevant factors, including loading conditions, material properties, and end conditions, to achieve accurate and safe designs. Keep learning, keep designing, and keep building a safer future!
