Formulas for Stress in Pressure Vessels and Cylinders
Ever wondered how a submarine can withstand the immense pressure deep beneath the ocean's surface? Or how the gas cylinders in your home stay safe? The answer lies in the principles of stress analysis in pressure vessels and cylinders. Understanding these principles, and especially the formulas that govern them, is crucial for ensuring safety and reliability in a wide range of engineering applications. For mechanical engineers, students delving into material strength, and professionals involved in structural design, mastering these formulas is an essential skill.
Understanding Stress in Thin-Walled Pressure Vessels
Thin-walled pressure vessels, like storage tanks or pipelines, are designed with walls that are significantly thinner than their diameter. This allows for simplified stress analysis, making them a fundamental starting point for understanding the broader topic. The stresses experienced are primarily tensile, acting to stretch the material.
The two main types of stress we focus on are circumferential stress (also known as hoop stress) and longitudinal stress. Circumferential stress acts around the circumference of the cylinder, while longitudinal stress acts along the length of the cylinder.
Circumferential (Hoop) Stress Formula
The formula for calculating circumferential stress (σc) in a thin-walled pressure vessel is: σc = (P r) / t, where P is the internal pressure, r is the radius of the vessel, and t is the wall thickness. This formula tells us how much stress the vessel's wall experiences due to the pressure pushing outwards.
Longitudinal Stress Formula
Longitudinal stress (σl) is calculated using the formula: σl = (P r) / (2 t). Notice that the longitudinal stress is half the magnitude of the circumferential stress. This is because the pressure acts on the circular area at the end of the cylinder, which is resisted by the entire cross-sectional area of the cylinder wall.
Example Calculation
Let's say we have a cylindrical tank with an internal pressure of 10 MPa, a radius of 0.5 meters, and a wall thickness of
0.01 meters.
Circumferential stress: σc = (10 MPa 0.5 m) /
0.01 m = 500 MPa.
Longitudinal stress: σl = (10 MPa 0.5 m) / (2
0.01 m) = 250 MPa.
Stress in Spherical Pressure Vessels
Spherical pressure vessels, like some types of gas storage tanks, offer advantages in terms of stress distribution. The stress is uniform in all directions, meaning there are no areas of concentrated stress that could lead to failure. Because of this uniform stress distribution, spherical vessels can often withstand higher pressures than cylindrical vessels of the same size and material.
Formula for Spherical Vessels
The stress (σ) in a thin-walled spherical pressure vessel is given by: σ = (P r) / (2 t), where P is the internal pressure, r is the radius of the sphere, and t is the wall thickness. This formula is identical to the longitudinal stress formula for a cylindrical vessel. This is because the stress is uniform, and effectively acts in both the circumferential and longitudinal directions.
Advantages of Spherical Vessels
The uniform stress distribution makes spherical vessels inherently stronger and more resistant to failure. They also tend to have a smaller surface area for a given volume compared to cylindrical vessels, which can reduce material costs. However, they are often more difficult and expensive to manufacture.
Thick-Walled Cylinders: Lame's Equations
When the wall thickness of a cylinder is a significant fraction of its radius, the assumption of uniform stress distribution no longer holds. In these cases, we need to use Lame's equations to accurately determine the stress distribution. Lame's equations consider the variation of stress across the wall thickness.
Radial and Tangential Stress
In thick-walled cylinders, we consider two primary stress components: radial stress (σr) and tangential stress (σt). Radial stress acts in the radial direction, while tangential stress acts circumferentially.
Lame's Equations
Lame's equations are:
σr = A - B / r2
σt = A + B / r2
Where A and B are constants determined by the boundary conditions (internal and external pressures), and r is the radial distance from the center of the cylinder.
Determining Constants A and B
To find A and B, we apply the boundary conditions. For example, at the inner radius (ri), the radial stress is equal to the internal pressure (-Pi), and at the outer radius (ro), the radial stress is equal to the external pressure (-Po). Solving these two equations simultaneously allows us to determine the values of A and B.
Practical Applications of Lame's Equations
Lame's equations are crucial for the design of high-pressure applications such as hydraulic cylinders, gun barrels, and underground pipelines. Accurately predicting the stress distribution in these components is essential for preventing failure and ensuring safety.
Failure Theories and Safety Factors
Once we calculate the stresses in a pressure vessel or cylinder, we need to ensure that the material can withstand these stresses without failing. This is where failure theories and safety factors come into play. These concepts are vital in structural design and failure analysis.
Maximum Principal Stress Theory
This theory states that failure occurs when the maximum principal stress in a material reaches the material's tensile strength. It's a simple theory but can be overly conservative for ductile materials.

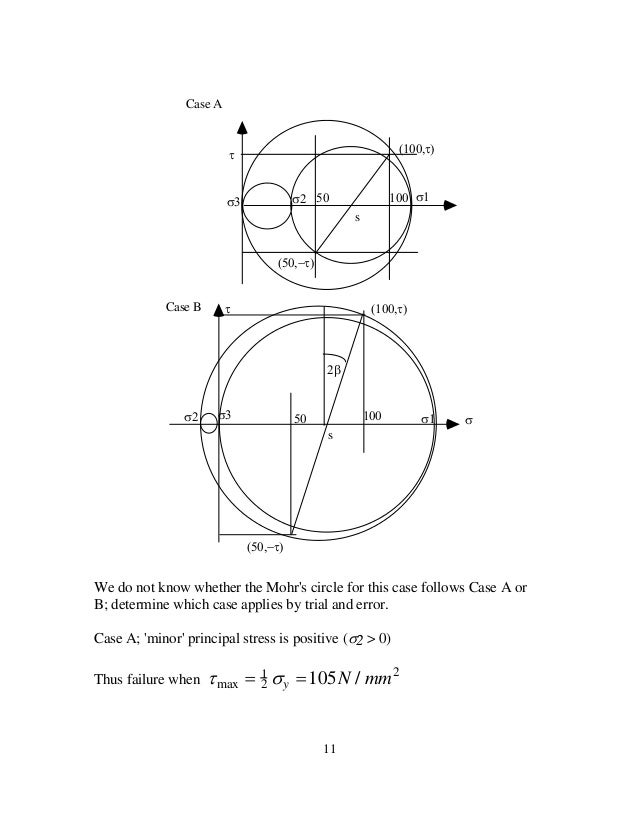

Maximum Shear Stress Theory
This theory states that failure occurs when the maximum shear stress in a material reaches the material's shear strength. It's more accurate than the maximum principal stress theory for ductile materials.
Von Mises Yield Criterion
The Von Mises criterion is a more sophisticated theory that considers the combined effect of all stress components. It's widely used for ductile materials and provides a more accurate prediction of yielding.
Safety Factors
A safety factor is a multiplier applied to the allowable stress to ensure that the actual stress remains below the material's yield strength or ultimate tensile strength. Safety factors account for uncertainties in material properties, loading conditions, and manufacturing processes. A typical safety factor might range from 1.5 to 4, depending on the application and the level of risk involved.
Practical Applications and Case Studies
The principles and formulas discussed are applied extensively in various industries. Let's explore some examples.
Case Study: Pipeline Design
When designing a pipeline to transport oil or gas, engineers must consider the internal pressure, the pipe diameter, and the wall thickness. They use the formulas for circumferential and longitudinal stress to determine the required wall thickness to ensure the pipe can safely withstand the pressure. They also consider external loads, such as soil pressure and thermal expansion, in their design.
Application: Submarine Design
Submarines are subjected to immense external pressure. Engineers use thick-walled cylinder theory to analyze the stress distribution in the hull and ensure it can withstand the pressure at the operating depth. The choice of material and the hull's geometry are critical to the submarine's safety.
Application: Pressure Cookers
Even everyday appliances like pressure cookers rely on these principles. The vessel needs to withstand the elevated pressure created during cooking. Designers use these formulas to calculate the necessary wall thickness and material strength for safe operation. Built-in safety valves are also crucial for preventing over-pressurization.
Pros and Cons of Different Vessel Shapes
The choice of vessel shape, whether cylindrical or spherical, depends on various factors. Each shape has its advantages and disadvantages.
Cylindrical Vessels: Pros and Cons
Pros: Cylindrical vessels are relatively easy to manufacture and are suitable for storing large volumes of fluids or gases. They can be easily integrated into existing piping systems.
Cons: They have a higher stress concentration at the junctions between the cylindrical body and the end caps. The stress distribution is not uniform, which can lead to localized failure.
Spherical Vessels: Pros and Cons
Pros: Spherical vessels have a uniform stress distribution, making them stronger and more resistant to failure. They have a smaller surface area for a given volume, which can reduce material costs.
Cons: They are more difficult and expensive to manufacture. They may not be suitable for applications where space is limited.
FAQs
What is the difference between hoop stress and longitudinal stress?
Hoop stress (circumferential stress) acts around the circumference of a cylinder, while longitudinal stress acts along the length of the cylinder. Hoop stress is typically twice the magnitude of longitudinal stress in thin-walled cylinders.
When should I use Lame's equations instead of thin-walled cylinder formulas?
Use Lame's equations when the wall thickness of the cylinder is a significant fraction of its radius (typically when the ratio of outer radius to inner radius is greater than 1.2). Thin-walled cylinder formulas are only accurate for cylinders with relatively thin walls.
What is a safety factor, and why is it important?
A safety factor is a multiplier applied to the allowable stress to ensure that the actual stress remains below the material's yield strength or ultimate tensile strength. It's important because it accounts for uncertainties in material properties, loading conditions, and manufacturing processes, ensuring the structural integrity of the vessel.
How does temperature affect stress in pressure vessels?
Temperature changes can induce thermal stresses in pressure vessels due to thermal expansion or contraction. These stresses can be significant, especially in vessels subjected to large temperature variations. Designers must consider these thermal stresses in their analysis and design.
What are some common causes of pressure vessel failure?
Common causes of pressure vessel failure include corrosion, fatigue cracking, weld defects, over-pressurization, and inadequate design or material selection. Regular inspection and maintenance are crucial for preventing these failures.
What is the role of non-destructive testing (NDT) in ensuring the safety of pressure vessels?
Non-destructive testing (NDT) methods, such as ultrasonic testing, radiography, and magnetic particle inspection, are used to detect defects and discontinuities in pressure vessels without damaging them. NDT is essential for ensuring the quality of manufacturing and for detecting any degradation or damage during service.
Conclusion
Understanding the formulas for stress in pressure vessels and cylinders is fundamental for anyone involved in mechanical engineering, structural design, or material strength analysis. By mastering these concepts and applying them diligently, we can design safer, more reliable structures that withstand the rigors of their intended environments. So, keep learning, keep practicing, and never underestimate the power of a well-applied formula! Your understanding of these principles is a cornerstone of engineering safety and innovation.
